Shift lever & retainer for Alphard ATH10W

Click on the part subgroup below to get genuine part numbers.

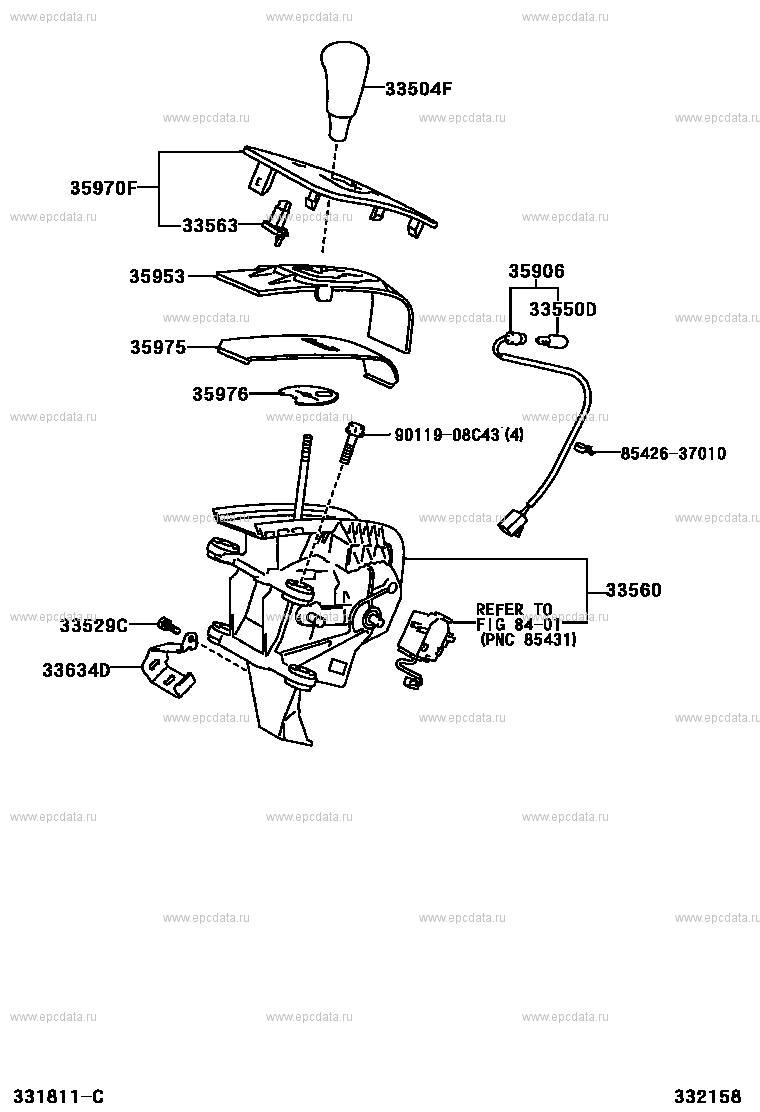

Scheme 1

(0307- ) ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 33504F KNOB SUB-ASSY, SHIFT LEVER 35970F HOUSING ASSY, POSITION INDICATOR 33563 BUTTON, SHIFT LOCK RELEASE 35906 WIRE SUB-ASSY, INDICATOR LAMP 35953 GUIDE, POSITION INDICATOR LIGHT 33550D BULB, POSITION INDICATOR LAMP 35975 COVER, SLIDE (FOR POSITION INDICATOR) 35976 COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) 9011908C43 ** Std Part 8542637010 ** Std Part 33560 UNIT ASSY, SHIFT LOCK CONTROL 33529C BOLT, SHIFT LEVER ** 84-01 33634D BRACKET, SHIFT LEVER HARNESS CONNECTOR

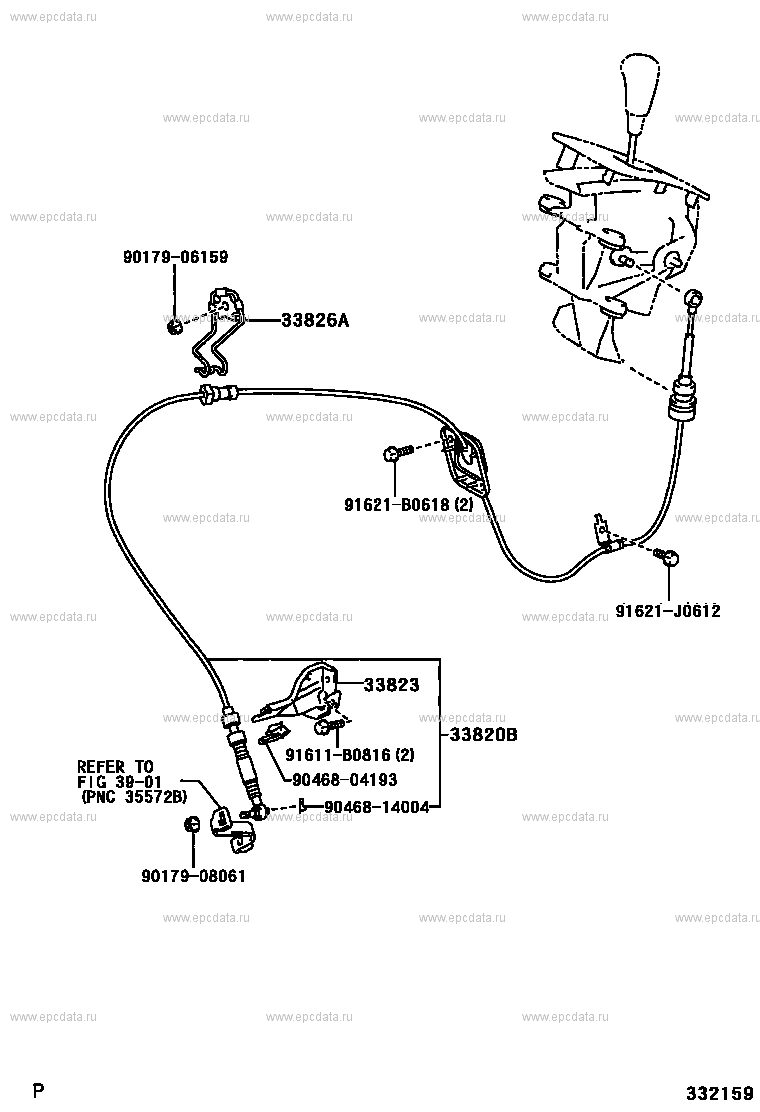

Scheme 2

(0307- ) ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 9017906159 ** Std Part 33826A BRACKET, TRANSMISSION CONTROL CABLE, NO.2 91621B0618 ** Std Part 91621J0612 ** Std Part 33823 BRACKET, TRANSMISSION CONTROL CABLE, NO.1 33820B CABLE ASSY, TRANSMISSION CONTROL 91611B0816 ** Std Part 9046804193 ** Std Part ** 39-01 9046814004 ** Std Part 9017908061 ** Std Part

Alphard ATH10W
