Roof headlining & silencer pad for Alphard ANH25W
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.
Scheme 1
| (0804-1110) |
Click part number in the scheme or in the list: 63391A CLIP(FOR ROOF HEADLINING TRIM)63412B RETAINER, ROOF CONSOLE 63301 TRIM SUB-ASSY, ROOF HEADLINING 63342 PAD, ROOF SILENCER, NO.2 63323E CASE, HEADLINING LAMP 9015950032 ** Std Part ** 86-02 63341 PAD, ROOF SILENCER, NO.1 81369 COVER, SPOT LAMP ** 81-21 ** 82-02 ** 87-15 ** 84-01 ** 86-04 ** 86-09 63415B GRILLE, ROOF SPEAKER, RH 63415D GRILLE, ROOF SPEAKER, CENTER 63416B GRILLE, ROOF SPEAKER, LH |
Scheme 2
|
(0804-1110) ｱﾘ(ﾂｲﾝ ﾑｰﾝﾙｰﾌ) |
Click part number in the scheme or in the list: 63306 TRIM SUB-ASSY, SUNSHADE63303 TRIM SUB-ASSY, SUNSHADE, NO.2 63301 TRIM SUB-ASSY, ROOF HEADLINING 9015950032 ** Std Part 63323E CASE, HEADLINING LAMP ** 86-04 ** 81-21 ** 82-02 ** 87-15 ** 84-01 63416B GRILLE, ROOF SPEAKER, LH 63415B GRILLE, ROOF SPEAKER, RH ** 86-02 63391A CLIP(FOR ROOF HEADLINING TRIM) ** 86-09 |

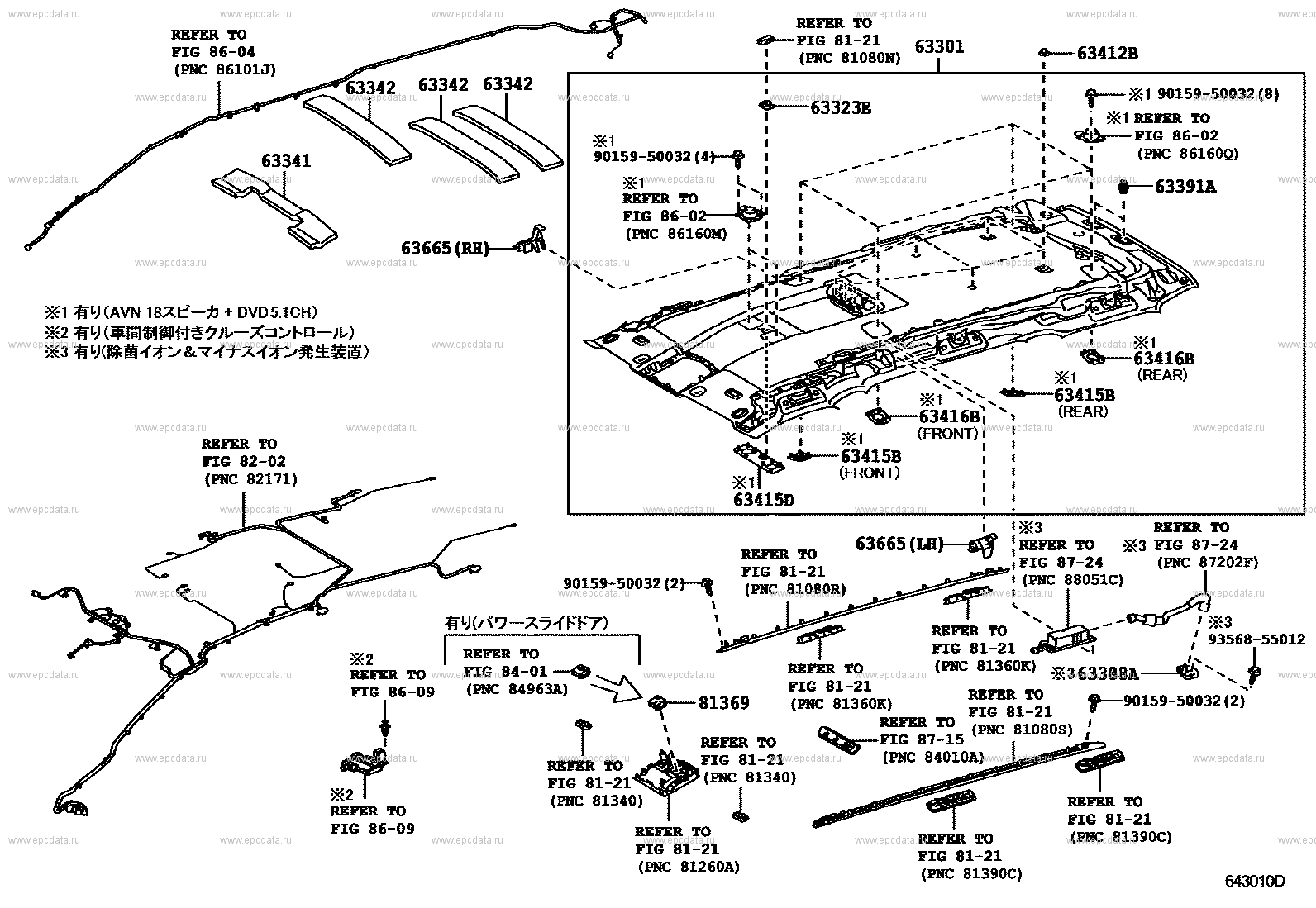

Scheme 3
| (1110- ) |
Click part number in the scheme or in the list: ** 86-04** 86-02 ** 82-02 ** 86-09 ** 84-01 ** 81-21 ** 87-24 ** 87-15 63391A CLIP(FOR ROOF HEADLINING TRIM) 63412B RETAINER, ROOF CONSOLE 63342 PAD, ROOF SILENCER, NO.2 63323E CASE, HEADLINING LAMP 9015950032 ** Std Part 63341 PAD, ROOF SILENCER, NO.1 9356855012 ** Std Part 81369 COVER, SPOT LAMP 63415B GRILLE, ROOF SPEAKER, RH 63665 SPACER, ROOF HEADLINING 63415D GRILLE, ROOF SPEAKER, CENTER 63416B GRILLE, ROOF SPEAKER, LH 63388A COVER, ROOF HEADLINING HOLDER 63301 TRIM SUB-ASSY, ROOF HEADLINING |
