Fuel injection system for Hilux Surf TRN210W

Click on the part subgroup below to get genuine part numbers.

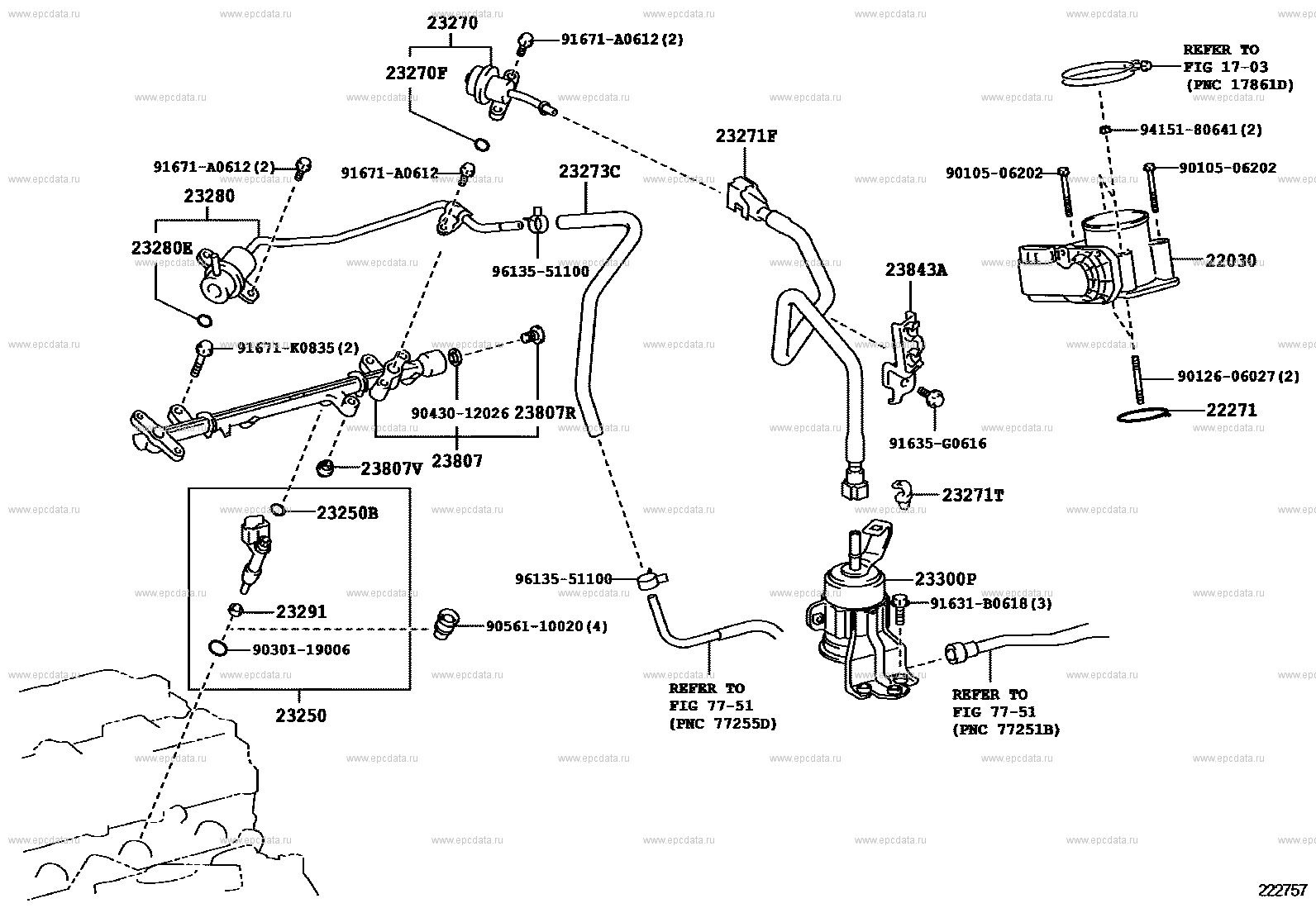

(0408- )2TRFE Open full size scheme

Click part number in the scheme or in the list: 22030 BODY ASSY, THROTTLE W/MOTOR 22271 GASKET, THROTTLE BODY 9010506202 ** Std Part 9012606027 ** Std Part 9415180641 ** Std Part ** 17-03 91671A0612 ** Std Part 9056110020 ** Std Part 23250B RING, O(FOR FUEL INJECTOR) 23250 INJECTOR ASSY, FUEL 9030119006 ** Std Part 23291 INSULATOR, INJECTOR VIBRATION 23280 REGULATOR ASSY, FUEL PRESSURE 23280E RING, O(FOR FUEL PRESSURE REGULATOR) 23270 DAMPER ASSY, FUEL PRESSURE PULSATION 23270F RING, O(FOR PULSATION DAMPER) 23807 PIPE SUB-ASSY, FUEL DELIVERY 91671K0835 ** Std Part 23807R PLUG, FUEL DELIVARY PIPE 23807V SPACER, NO.1(FOR DELIVERY PIPE) 9043012026 ** Std Part ** 77-51 9613551100 ** Std Part 23271F HOSE, FUEL 23843A CLAMP,FUEL PIPE, NO.3(FOR EFI) 91635G0616 ** Std Part 23300P FILTER, FUEL(FOR EFI) 23271T CLAMP OR CLIP(FOR FUEL HOSE) 23273C HOSE, FUEL, NO.2 91631B0618 ** Std Part

Hilux Surf TRN210W
