(9708- )RZN147,152..ATM
|

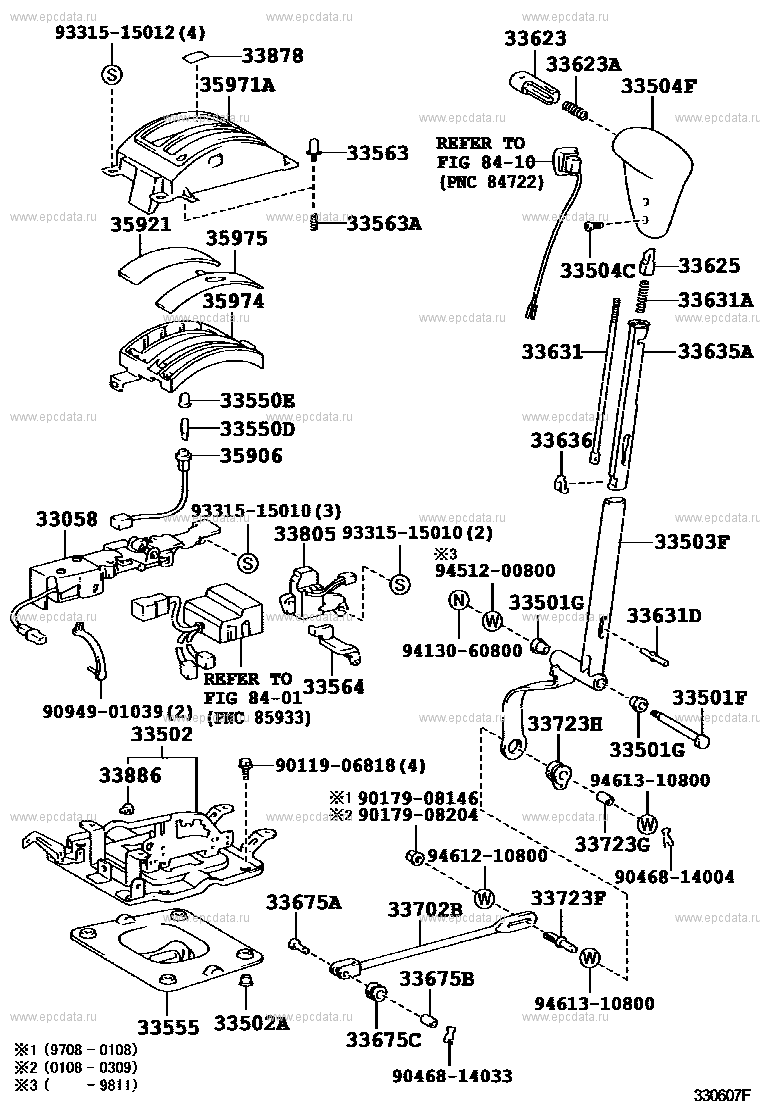

Click part number in the scheme or in the list:
9331515012 ** Std Part
35971A HOUSING, POSITION INDICATOR, UPPER
35921 PLATE, CONTROL POSITION INDICATOR
35975 COVER, SLIDE (FOR POSITION INDICATOR)
35974 HOUSING, POSITION INDICATOR, LOWER
33550E CAP, POSITION INDICATOR LAMP
33550D BULB, POSITION INDICATOR LAMP
35906 WIRE SUB-ASSY, INDICATOR LAMP
33058 BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
9094901039 ** Std Part
33502 PLATE SUB-ASSY, SHIFT LEVER
33886 STOPPER, SHIFT LEVER
9011906818 ** Std Part
9461210800 ** Std Part
33675A PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33675C GROMMET (FOR TRANSMISSION CONTROL ROD)
9461310800 ** Std Part
33723H GROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
33702B ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
9046814033 ** Std Part
9046814004 ** Std Part
33723G BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33501G BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33631D PIN, GROOVED (FOR DETENT ROD)
33501F SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)
33503F LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33636 GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)
9413060800 ** Std Part
9331515010 ** Std Part
33631 ROD, DETENT
33625 SLEEVE, SHIFT LEVER KNOB
33631A SPRING, COMPRESSION (FOR DETENT ROD)
33635A GUIDE, WIRE, NO.1 (FOR SHIFT LEVER)
33623A SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33623 BUTTON, SHIFT LEVER KNOB
33563A SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33878 LABEL, SHIFT LOCK INFORMATION, NO.2
33675B BUSH (FOR TRANSMISSION CONTROL ROD)
33504F KNOB SUB-ASSY, SHIFT LEVER
33502A COLLAR (FOR FLOOR SHIFT SETTING)
9017908204 ** Std Part
9017908146 ** Std Part
33563 BUTTON, SHIFT LOCK RELEASE
** 84-10
** 84-01
9451200800 ** Std Part
33564 LINK, SHIFT LOCK RELEASE, NO.1
33805 PLATE SUB-ASSY, SHIFT LOCK (FOR FLOOR SHIFT)
33555 BOOT, SHIFT LEVER
33723F SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33504C SCREW (FOR SHIFT LEVER KNOB SETTING) |
